RTLI Example
The RTLI example shows an interpretive RTLI can be used to drive a real-time system within its deterministic requirements yet sill allow for quick modification of the human-computer interface. The example also shows how a FIFO can be used to connect an interpretive real-time application with the real-time module. FIFOs are often used to connect a non-real-time human-computer interface to a real-time application, or for data logging to a storage device. The experimental example allows users to control the internal speaker of a computer by modifying the interrupt frequency driving the speaker.

This example requires the following:
      RTAI should be installed and a RTAI patched kernel should be running.
      A web server should be installed along with Ch CGI.

Files used in the example:
      common.h: Header file containing shared variable names.
      fifo_app.c: Source code for the command line version of the real-time application.
      fifo_app_gui.c: Source code for the gui version of the real-time application.
      fifo_task.c: Source code for the real-time task.
      rtai_fifo.html: Website HTML for the Web-based control interface.
      fifo_app_cgi.ch: Ch CGI code for Web-based control.
      speaker_freq.chf: Ch function file that changes the frequency output for the speaker.
      speaker_off.chf: Ch function file that disables the speaker.
      speaker_on.chf: Ch function file that enables the speaker.

Click on the links below to view the files online.

common.h
fifo_app.c
fifo_app_cgi.ch
fifo_app_gui.c
fifo_task.c
rtai_fifo.html
speaker_freq.chf
speaker_off.chf
speaker_on.chf

Download the Example: zip tar



Screenshots:

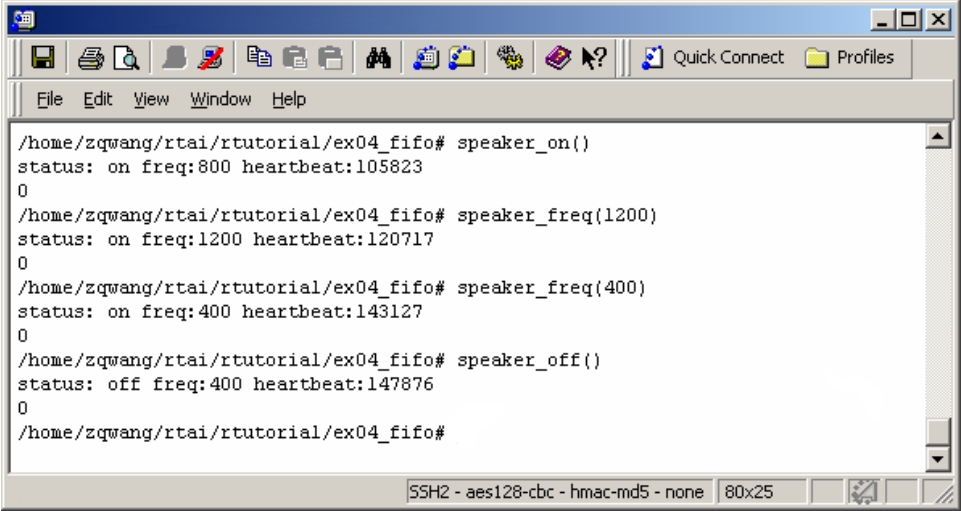

Running the speaker functions at the command line.

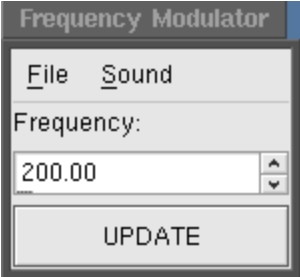

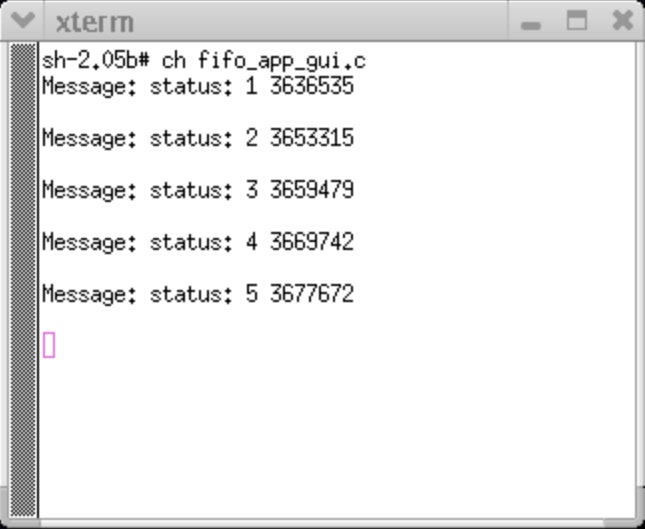

Using the Gtk GUI version of the real-time application.

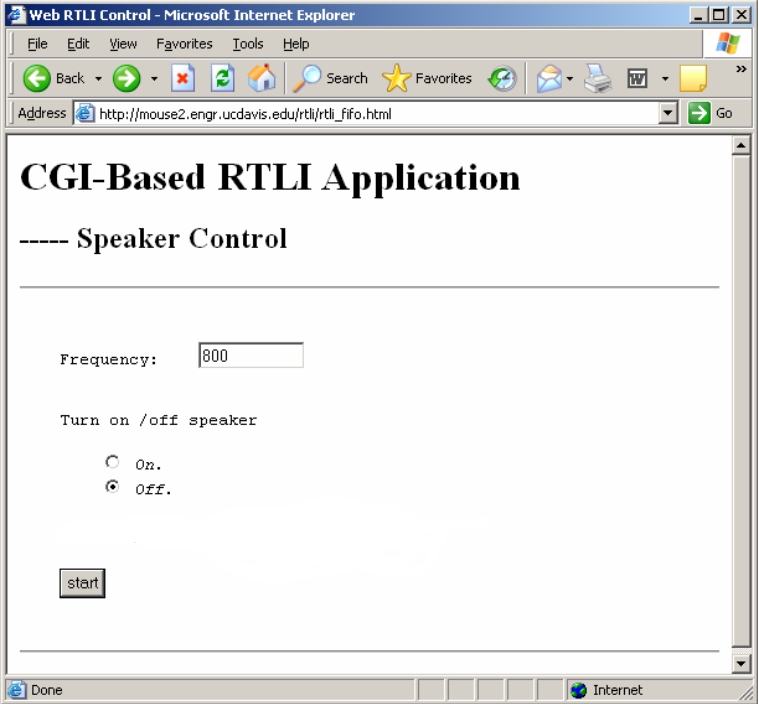

Using the Web-based Interface version of the real-time application.

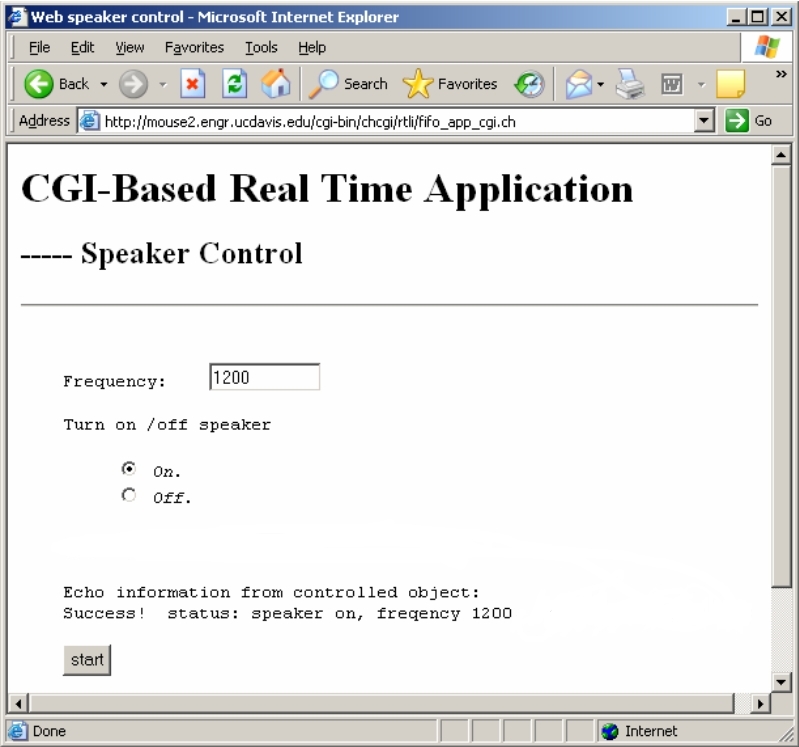

Result from the Web-based Interface.
